Friction, core and lubrication zones of a motor cylinder were studied in order to investigate opportunities for improving fuel efficiency and thus reduce harmful emissions.

MountainsMap® software was used to provide advanced analysis of the volume of the zones studied.

MountainsMap® tools used

  • 3D visualization of friction, core and lubrication zones

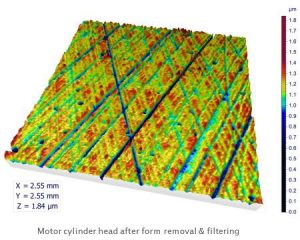

The motor cylinder head was displayed in 3D after form removal and filtering were applied. This enabled visualization of friction, core and lubrication zones.



  • Graphical study of functional volume parameters

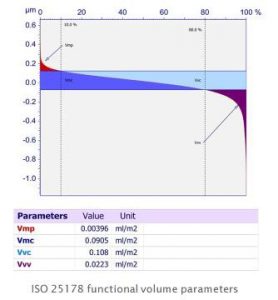

ISO 25178 functional volume parameters(Vmp, Vmc, Vvc, Vvv) were calculated (in ml/m2 or µm3/mm2).



Instrument & software used

3D scanning profilometer + MountainsMap® Scanning Topography software
