Geometric dimensioning of contour profiles and horizontal contours extracted from images is a useful tool in particular in the area of quality control.

In the automotive industry, engineers used MountainsMap® to check compliance of components with nominal form.

MountainsMap® tools used

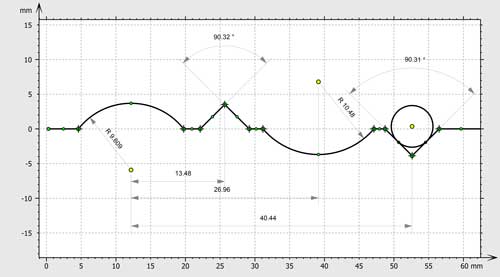

  • Auto-dimensioning

Dimensions on lines, arcs, circles and angles between intersecting tangents were automatically generated.

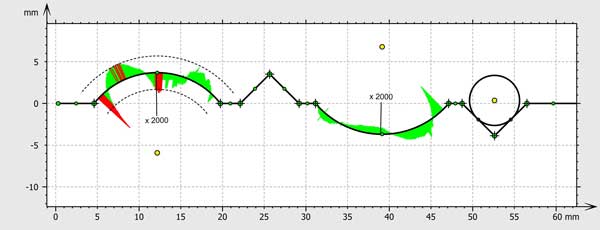

  • Graphical display of form deviations

Form deviations from nominal segments and arcs were displayed graphically, together with upper and lower tolerance limits.



Instrument & software used

2D profilometer + MountainsMap® Profile software
