Characterization of metal defectIn today’s competitive environment, industrial manufacturers continue to invest heavily in tests aiming to improve metal coating performances.

In this case study, scratches on a copper surface with tin deposits were measured by a 3D optical profiler.

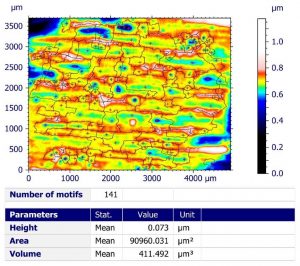

The roughness surface was obtained by applying filtering techniques. The surface was then partitioned into motifs with ridge lines bounding pits indicated by the + symbol. Morphological parameters and statistics on scratches obtained allowed greater understanding of scratch phenomena.

Mountains® tools used

  • Advanced filtering techniques

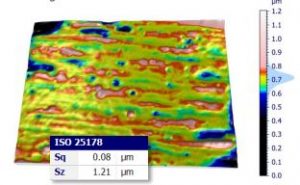

MountainsMap® operaters were applied to obtain the roughness surface allowing calculation of  ISO 25178 Sq and Sz height parameters.

  • Motifs analysis

The surface was partitioned into motifs with ridge lines bounding pits indicated by the + symbol. Motifs parameters were calculated.

Instrument & software used

3D optical profilometer + MountainsMap® software
